Choosing the Right Nitrogen Inerting System for Your Business Needs
Have you thought about how important it is to choose the right nitrogen inerting system for your work? Your choice affects many things, like capacity, purity, efficiency, and cost. Each of these factors is important for keeping your processes running well. By making a smart choice, you can boost safety, improve product quality, and make your operations work better.
Key Takeaways
Picking the right nitrogen inerting system helps safety and product quality. Know your needs to make a smart choice.
Different systems, like continuous flow and batch systems, have different uses. Learn the differences to find the best one for your work.
Capacity and purity levels are very important. Check your industry's needs to make sure the system meets the right standards.
Think about the long-term costs of renting or buying. Renting costs less at first, but buying can save money later.
Keep up with industry rules. Following these rules keeps you safe and helps you avoid legal problems in your work.
Types of Nitrogen Inerting Systems
When you pick a nitrogen inerting system, you have many choices. Each type meets different needs and uses. Knowing about these systems helps you decide wisely.
Continuous Flow Systems
Continuous flow systems give a steady supply of nitrogen. They make nitrogen when needed. This is important for industries that need constant inerting. For example, in oil and gas, these systems stop explosions by keeping things safe. In food packaging, they keep products fresh by pushing out oxygen.
Here’s a quick look at where continuous flow systems are used:
Industry | Application Description |
|---|---|
Oil and Gas | |
Petrochemical | Stops materials from breaking down during production. |
Food Packaging | Keeps products fresh and makes them last longer by removing oxygen. |
Electronics | Protects delicate parts from moisture and oxidation during making and storing. |
Batch Systems
Batch systems work in a different way. They create nitrogen in batches, not all the time. This can help operations that don’t need a constant flow. But, batch systems usually need more setup time and equipment. They can be bigger and need more manual work.
Here’s how batch and continuous flow systems compare:
Aspect | Batch Systems | Continuous Flow Systems |
|---|---|---|
Steady State Operation | Large differences can hurt quality and amount. | No mixing back, so the final product does not touch raw materials. |
Inventory Management | Raw materials are used up before starting the reaction. | Can stop before using raw materials. |
Footprint | Usually larger because of used inventory. | Smaller size, only 10-20% of batch systems. |
Preparation Time | Needs a lot of manual setup. | Automated setup lowers chances of mistakes. |
Portable Systems
Portable nitrogen inerting systems are flexible. You can easily move them to different places. This is very helpful in industries like aerospace and pharmaceuticals, where safety is very important. These systems help keep things safe during mixing and processing.
Common uses for portable systems include:
Industry | Scenario Description |
|---|---|
Oil and gas storage tanks | |
Chemical processing plants | Helps control reactions and stop fires. |
Pharmaceutical reactors | Keeps things safe during mixing and processing. |
Food and beverage packaging | Stops products from spoiling and oxidation. |
Aerospace fuel tanks | Keeps fuel safe and in good condition. |
Choosing the right nitrogen inerting system depends on what your business needs. Each type has its benefits and uses. Knowing these differences will help you improve your operations.
Key Considerations for Nitrogen Inerting
When you choose a nitrogen inerting system, think about some important factors. These factors affect how your operations run and can change how well your processes work.
Capacity Requirements
Capacity is a key part of nitrogen inerting. It shows how much nitrogen your system must make for your needs. Different industries need different amounts of nitrogen. For example, food packaging usually needs lower pressure than enhanced oil recovery. Here’s a table that shows typical nitrogen pressure for different uses:
Application | Typical Nitrogen Pressure (Barg) |
|---|---|
Food Packaging | 3.5 to 8 |
Enhanced Oil Recovery (EOR) | 35 to 50 |
Semiconductor Manufacturing | 5 to 7 |
Laser Cutting | Up to 20 |
Tyre Manufacturing | 2.5 to 24 |
High-Pressure Cylinder Testing | Up to 300 |
Knowing these needs helps you pick a system that fits your production without wasting resources.
Purity Levels
Purity levels of nitrogen are very important for safety and effectiveness in inerting. Different uses need different purity levels. For example, semiconductor making needs nitrogen with 99.999% purity or more, while food packaging usually needs 99% to 99.9% purity. Here’s a table that shows the standard purity levels for different industries:
Application | Purity Level |
|---|---|
Food Packaging | 99% to 99.9% |
Chemical Manufacturing | 95% to 99.5% |
Semiconductor Fabrication | 99.999% and above |
Pharmaceuticals | High purity required |
Metal Fabrication | 95% to 99.5% |
High-purity nitrogen is key for keeping safe oxygen levels in storage, stopping fires. Changes in nitrogen purity can make it hard for the system to remove oxygen, affecting safety. So, you must check nitrogen quality to meet industry rules.
Efficiency and Performance
Efficiency and performance are very important when looking at nitrogen inerting systems. Different systems, like Pressure Swing Adsorption (PSA) and Vacuum Pressure Swing Adsorption (VPSA), have different efficiencies. A better system lowers costs and energy use. You should see how these factors fit with your budget and goals.
Cost Analysis
Cost is a big factor when choosing a nitrogen inerting system. You need to look at both the initial costs and ongoing expenses. Here’s a list of typical costs related to nitrogen inerting systems:
Cost Component | Description |
|---|---|
Initial Investment | Cost of nitrogen generator unit, vents or hardware, and installation. |
Ongoing Maintenance Costs | Costs for repairs and maintenance, which can be high if leaks happen. |
Potential Savings | Fewer leaks and longer system life lead to lower overall costs. |
Life Extension | Systems can last much longer, cutting down on replacements and costs. |
Emergency Repair Costs | Each service call for leaks can cost $1,000–$2,000, which can add up fast. |
Upfront Cost Savings | Using cheaper materials and better designs because of nitrogen protection. |
By looking at these costs, you can make a smart choice that fits your budget while meeting your needs.
Assessing Business Needs for Nitrogen Inerting
When you look at your business needs for nitrogen inerting, think about some important factors. Each industry has different needs that affect your system choice. Knowing these needs helps you pick the right solution.
Industry-Specific Requirements

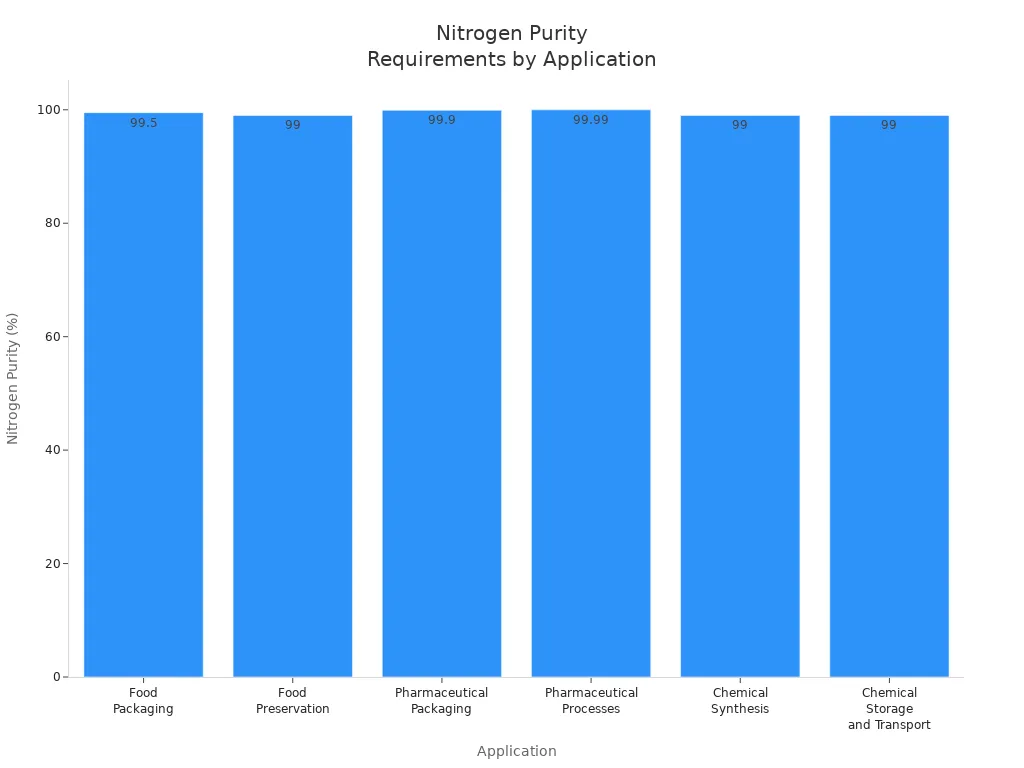

Different industries need certain nitrogen purity levels and uses. Here’s a table that shows the needs for different sectors:
Industry | Application | Nitrogen Purity Level |
|---|---|---|
Food Processing | Food Packaging | ≥99.5% |
Food Preservation | ≥99% | |
Pharmaceuticals | Pharmaceutical Packaging | ≥99.9% |
Pharmaceutical Processes | ≥99.99% | |
Chemical Industry | Chemical Synthesis | ≥99% |
Chemical Storage and Transport | ≥99% |
These purity levels keep your processes safe and effective. For example, food packaging needs at least 99.5% purity to stay fresh. In pharmaceuticals, the purity must be 99.99% to keep products safe.
Scale of Operations
The size of your operations greatly affects your nitrogen inerting needs. Here are some key points to think about:
Nitrogen consumption volume: Bigger operations do better with onsite generation because they need a lot of nitrogen.
Purity requirements: Onsite systems can be made to fit specific purity levels for different uses.
Supply reliability: Onsite generation gives a steady supply, so you rely less on outside sources.
By checking your operational size, you can decide if you should buy an onsite nitrogen generator or choose another option. Larger facilities often find that onsite systems save money and work better over time.
Regulatory Compliance
Following regulations is very important when using nitrogen inerting systems. Different areas and industries have specific rules you must follow. Here’s a table that sums up some key regulations:
Standard/Regulation | Description | Application |
|---|---|---|
ISO 1496-3:2019 | Tells how to design and test ISO tank containers | Makes sure tanks can handle pressure from nitrogen purging |
CGA and EIGA Guidelines | Give best practices for handling gases that can cause suffocation | Safety rules for using inert gases |
ISO 9001:2015 | Framework for quality management systems | Sets safety rules for nitrogen purging |
ISO 45001:2018 | Health and safety management | Finds and reduces dangers from inerting |
IMDG Code | Rules for transporting dangerous goods | Requires inerting for flammable items during transport |
OSHA Standards | Safety rules for workers | Treats nitrogen purging as a confined-space job needing safety steps |
Knowing these rules helps you avoid legal problems and keeps your operations safe. Always stay updated on the latest standards for your industry.
Cost Comparison: Rental vs. Purchase of Nitrogen Inerting Systems
When you choose between renting and buying nitrogen inerting systems, think about the good and bad sides of each choice. Knowing these differences can help you pick what’s best for your business.
Advantages of Renting
Renting nitrogen inerting systems has many benefits. First, it costs less at the start. You can skip the big upfront costs that come with buying equipment. For example, if a lab needs 36,000 liters of nitrogen each week, renting tanks can cost over $18,000 each year. This is about 250 cylinders. Monthly rental fees are around $20 for each cylinder, plus delivery costs of about $25. Renting also gives you flexibility. If your needs change, you can easily change your rental agreement without being stuck in a long-term deal.
Benefits of Purchasing
On the other hand, buying a nitrogen inerting system can save you a lot of money in the long run. The first cost for a nitrogen generator can be between $5,000 and $40,000. While this might seem high, it stops ongoing rental and delivery fees. Buying on-site nitrogen systems makes your operations work better by giving you a steady supply of nitrogen. This lowers the chance of running out. Also, these systems help reduce your carbon footprint by cutting out the need to transport gas cylinders and lowering waste from cylinder disposal.
Long-term Financial Implications
The money side of renting versus buying nitrogen inerting systems shows that renting has lower immediate costs. But, long-term costs can add up a lot. Companies that choose on-site generation systems might have a high initial cost, but they can save a lot over time. The long payback times for these systems can make smaller businesses hesitate to invest. Because of this, they might keep renting or buying nitrogen in bottles or liquid form, which might not be as efficient later on.
Case Studies of Successful Nitrogen Inerting Implementations
Case Study 1: Chemical Manufacturing Company
A chemical manufacturing company had many problems before using a nitrogen inerting system. They had trouble keeping the right nitrogen flow and pressure. This caused safety risks. To fix this, they set up a nitrogen blanketing system that was calibrated. It had automated controls for constant monitoring. Regular maintenance was important to keep everything working well.
Challenge | Solution |
|---|---|
Keeping the Right Nitrogen Flow and Pressure | Use a calibrated nitrogen blanketing system with parts to control pressure and flow. Set up automated controls for constant monitoring. Regular maintenance is also very important. |
Shortages of Nitrogen Supply | Use backup systems like nitrogen cylinders or on-site nitrogen generators. Set up regular checks and alarms for nitrogen levels. |
Wrong Tank Design or Size | Make sure to engineer and design properly, considering tank size and materials. Do regular audits of the system. |
After they set up the nitrogen inerting system, the company saw big improvements. They had better safety, which helped stop fires and explosions in dangerous areas. Product quality got better because nitrogen kept their products safe from contamination and damage. Also, the equipment lasted longer, which reduced downtime and failures.
Case Study 2: Food Packaging Company
A food packaging company also gained from using nitrogen inerting. Before the system, they had problems with products spoiling because of oxidation. They learned that lowering oxygen levels was important to stop fires and explosions. The company adjusted how they introduced nitrogen based on their storage needs, which improved safety and cut down on waste.
Key improvements included:
Better Safety: Stops fires, explosions, and oxidation in dangerous areas.
Better Product Quality: Keeps products safe from contamination and damage.
Longer Equipment Life: Reduces rust and wear, leading to less downtime and fewer failures.
These case studies show important lessons. Following industry standards like NFPA 69 is key for safety and efficiency. Good design and expert advice help make nitrogen inerting systems work better.
Choosing the right nitrogen inerting system has some important factors. Think about these:
Reduces oxygen content: This helps stop rust.
Controls microbiologically influenced corrosion (MIC): Many bad bacteria need oxygen to grow.
Extends system life: Nitrogen inerting makes systems last longer, so you replace them less often.
Decreases risk of unexpected leaks: Fewer surprise leaks mean less damage to property.
Lowers maintenance costs: Less rust means fewer repairs you didn’t plan for.
Look closely at your business needs. This will help you make smart choices. For help, think about getting expert advice. Groups like BFPE International and Engineered Corrosion Solutions can help you pick the right system.
Organization | Description | Contact Link |
|---|---|---|
BFPE International | Helps with designing, installing, servicing, and checking nitrogen inerting systems. | |
Engineered Corrosion Solutions (ECS) | Focuses on nitrogen inerting products for fire sprinkler systems and offers ways to check for rust. | |
South-Tek Systems | Offers N2-Blast and DeOx systems for different types of sprinkler systems to prevent rust. |
By following these steps, you can make sure your nitrogen inerting system works well as your needs change.
FAQ
What is a nitrogen inerting system?
A nitrogen inerting system makes nitrogen gas to push out oxygen in different processes. This helps stop fires, explosions, and oxidation. It keeps things safe and improves product quality in industries like food packaging and chemical manufacturing.
How do I determine the right nitrogen purity level?
To find the right nitrogen purity level, look at your industry needs. For example, food packaging usually needs 99% purity. But semiconductor manufacturing needs 99.999% purity. Always check industry standards for specific uses.
Can I rent a nitrogen inerting system?
Yes, you can rent a nitrogen inerting system. Renting gives you flexibility and lower starting costs. This choice is great for businesses with changing nitrogen needs or those trying out systems before buying.
What are the maintenance requirements for these systems?
Maintenance needs change based on the system type. Regular checks on pressure, flow rates, and purity levels are very important. Plan routine inspections and fix any leaks quickly to keep everything working well and safe.
How does nitrogen inerting improve product quality?
Nitrogen inerting helps product quality by lowering oxygen exposure. This stops oxidation, spoilage, and contamination. Industries like food packaging gain a lot, as nitrogen helps make products last longer and stay fresh.
