Your Complete Guide to Installing Universal Trailer Tail Lights
Putting on universal trailer tail lights might look hard. But you can do it if you follow the steps. Good wiring is very important for safety. You need to make sure everything works right to prevent accidents. Keep in mind, a universal small trailer tail light needs special care when you install it. Don't forget safety rules, especially if you are using an underwater search light.
Key Takeaways
Collect all the tools and materials you need first. This means wire cutters, electrical tape, and a wiring harness for an easy job.
Always focus on safety. Unplug the trailer from the vehicle. Wear protective gear like goggles and gloves. This keeps you safe during installation.
After you install the new lights, test them well. Check all functions, like tail lights, brake lights, and turn signals. Make sure everything works right before you drive.
Necessary Materials and Safety Precautions
Before you start putting on your universal trailer tail lights, get the right tools and materials. This will make your work easier and safer.
Tools Required
You need some important tools to begin. Here’s a simple list:
Wire Cutters
Wire Strippers
Screwdriver
Drill (optional, if you need new holes)
Multimeter (to check wire connections)
Electrical Tape
Wire Connectors or Soldering Equipment (optional for securing connections)
Heat Shrink Wraps (to protect connections)
Wire Nuts (for extra security)
Materials Needed
Next, collect the materials you need for the installation. Here’s what to gather:
Wiring harness that fits your trailer
Tail lights
Connectors
Electrical tape
Safety Tips
Safety is very important. Here are some tips to remember:
⚠️ Always unplug the trailer from the vehicle before starting. This stops any accidental electrical shocks.
🔌 Check your wiring connections again. Loose wires can cause short circuits or lights that don’t work.
🧰 Wear safety goggles and gloves. Protect your eyes and hands while using tools and working with electricity.
🔦 Work in a bright area. Good light helps you avoid mistakes and see what you’re doing.
By getting the right tools and materials, and following these safety tips, you’ll be ready for a successful installation of your universal trailer tail lights.
Step-by-Step Installation Process

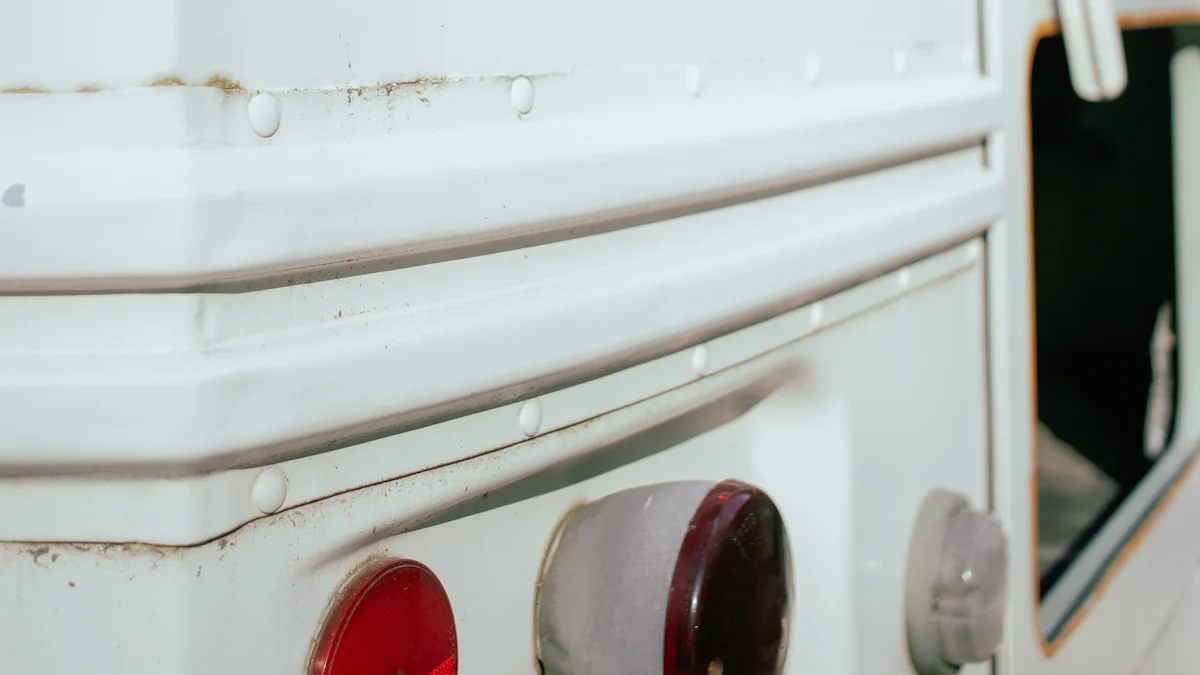

Removing Old Tail Lights
Start by taking off the old tail lights. Use your screwdriver to remove the screws holding the light fixture in place. Once you’ve unscrewed them, gently pull the light away from the trailer. Be careful not to damage any wiring. If you see any corrosion or rust, clean it up before moving on.
Wiring Connections
Next, it’s time to connect the new lights. Follow the wiring diagram that comes with your new tail lights. Typically, you’ll find a 4 wire system: one for the tail lights, one for the brake lights, one for the left turn signal, and one for the right turn signal. Strip the ends of the wires and connect them using wire connectors or soldering equipment. Make sure each connection is secure and wrap them with electrical tape for protection.
Grounding the New Lights
Grounding is crucial for your new lights to work properly. You can use the trailer frame as a conductor. Some lights come with a pigtail that connects to a screw near the fixture. Others have an internal lead that connects to a mounting screw inside the fixture. For extra reliability, consider running a dedicated ground wire around the trailer. This method ensures all lights are grounded effectively, as many users have found success with this approach.
Testing the New Lights
After everything is connected, it’s time to test your new lights. Here’s a quick checklist to follow:
Turn on your vehicle’s engine and headlights.
Have a friend observe the lights while you test them.
Check the tail lights by turning them on.
Test the brake lights by applying the brakes.
Activate the turn signals and ensure they flash correctly.
Don’t forget to check the marker and clearance lights.
If your trailer has electric brakes or backup lights, test those too.
Also, perform a continuity test to check for broken wires. Inspect ground connections for corrosion and ensure a clean metal surface. This will help you avoid any flickering or dim lights.
Troubleshooting Common Issues
When you put on universal trailer lights, you might see some problems. Don't worry! Here’s how to fix them.
Dim or Non-Functioning Lights
If your lights are dim or not working, check these causes:
Disconnected or Corroded Ground Wires: Make sure your ground wires are clean and connected well. This helps power flow.
Blown Fuse: Damaged wires can blow fuses in your system. Look in your fuse box to see if any fuses need changing.
Worn Bulb: Sometimes, just changing the bulb can fix the problem. If a bulb doesn’t light up, it might need replacing.
Wiring Problems
Wiring issues can be tricky, but you can solve them with these steps:
Perform a continuity test: Use a jumper wire and a tester to find broken wires in your system.
Inspect ground connections: Check for rust and make sure the ground wire connects well to the trailer frame.
Look for overload conditions: Know the maximum amperage rating. Check for hot or melting wires.
Check for corrosion: Clean or change corroded plugs and connectors for a strong connection.
Grounding Issues
Grounding problems can also affect your trailer lights. Here’s what to check:
Disconnected or Corroded Ground Wires: Make sure your ground wires and bolts are clean. Dirt can block power flow.
Loose Connections: If your lights flicker when you shake the trailer, tighten those ground nuts.
Old Bolts: Using old bolts can stop a good electrical ground.
Folded Trailer: Make sure your foldable trailer is fully open before connecting grounding wires.
Incompatible Materials: Homemade trailers made of composite materials may not have the metal needed for a good ground.
By following these troubleshooting tips, you can quickly find and fix problems with your trailer lights.
Now you know how to put on universal trailer tail lights. Keep these tips in mind:
Take off old lights gently.
Connect the new wires tightly.
Ground the lights correctly.
Test everything before driving.
Safety is important! Always follow rules to prevent accidents. If you need more information, look up trailer lighting laws and care tips. They help keep you safe and legal. 🚦
FAQ
How do I know if my universal small trailer tail light is compatible with my trailer?
Check the wiring harness and light specifications. Most universal small trailer tail lights fit standard connections.
What should I do if my trailer lights flicker?
Flickering often means a loose connection or a grounding issue. Inspect your wiring and ground connections for any problems.
Can I use LED lights instead of traditional bulbs for my trailer?
Yes! You can replace traditional bulbs with LED lights. Just ensure they match the voltage and wiring of your trailer.
